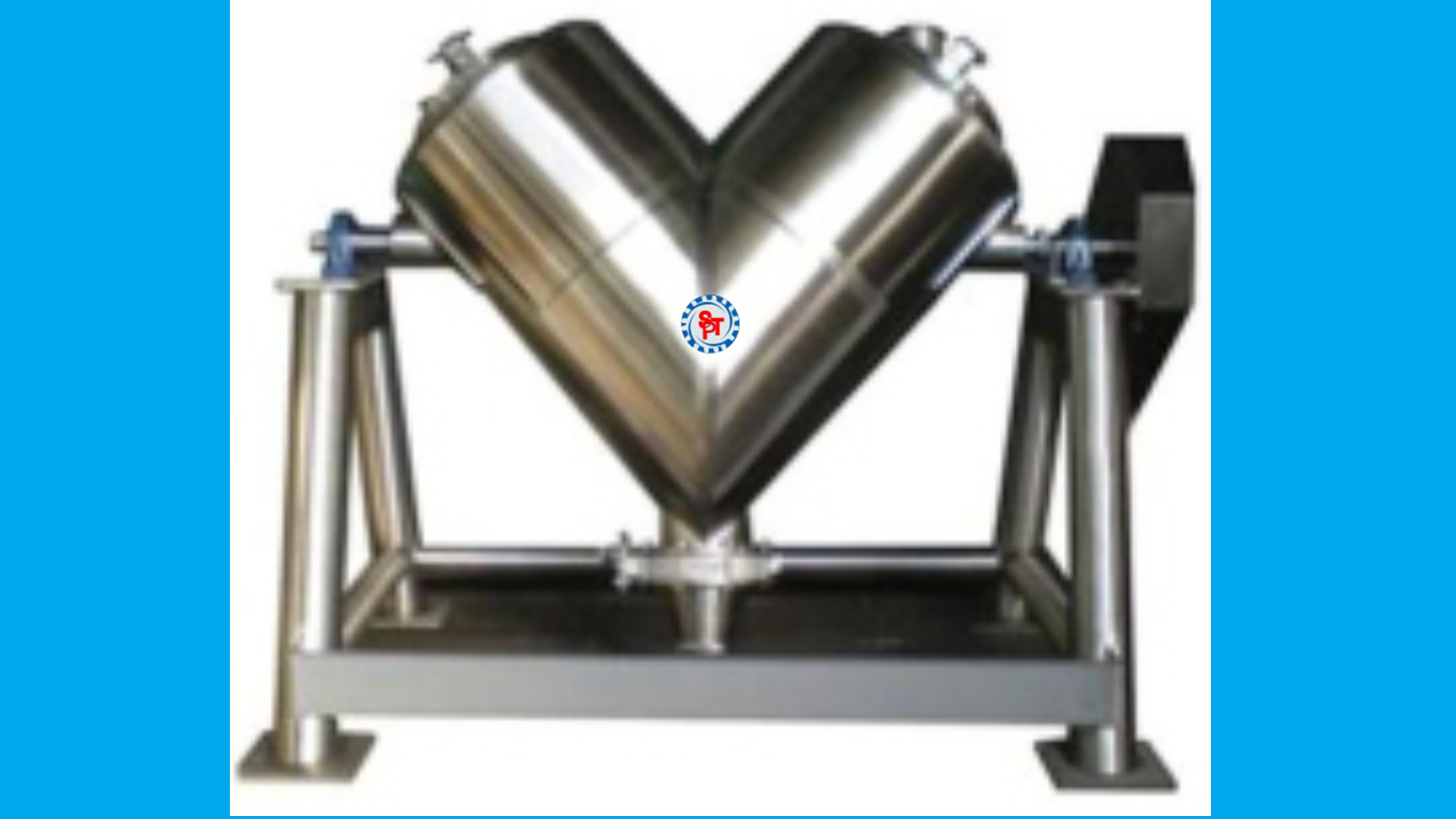

V-CONE BLENDER

  • Home
  • V-cone Blender

Main Features :-

All Contact Parts SS 316 / 316L as per cGMP Standard.
Suitable for dry mixing of products in powder form.
Easy for loading and unloading. Easy for cleaning.
Simple design requires minimum maintenance.
General structure & safety guards made out of mild steel & colure in Standard
Model and made out of SS304 & polished to the matt finish in GMP Model.
The “V” shape gives sufficient continuous movement to the granules.
Maximum care has been taken to ensure safe operation of the unit.
Manual rotating facility with hand wheel for inching.
ACVFD for variable speed

Technical Specification :-

Model VB-50 VB-100 VB-200 VB-300 VB-500 VB-1000
Gross Volume in Ltrs 50 100 200 300 500 1000
Working Volume in Ltrs 35 60 150 180 250 600
Approx capacity in Kgs 20 40 80 140 240 450
Motor HP 1.5 2 3 3 7.5 10
Overall Height in mm 1200 1300 2000 2300 2550 3500
Overall Width in mm 700 750 1000 1025 1100 1250
Overall Depth in mm 1100 1400 1500 1500 1950 2100
