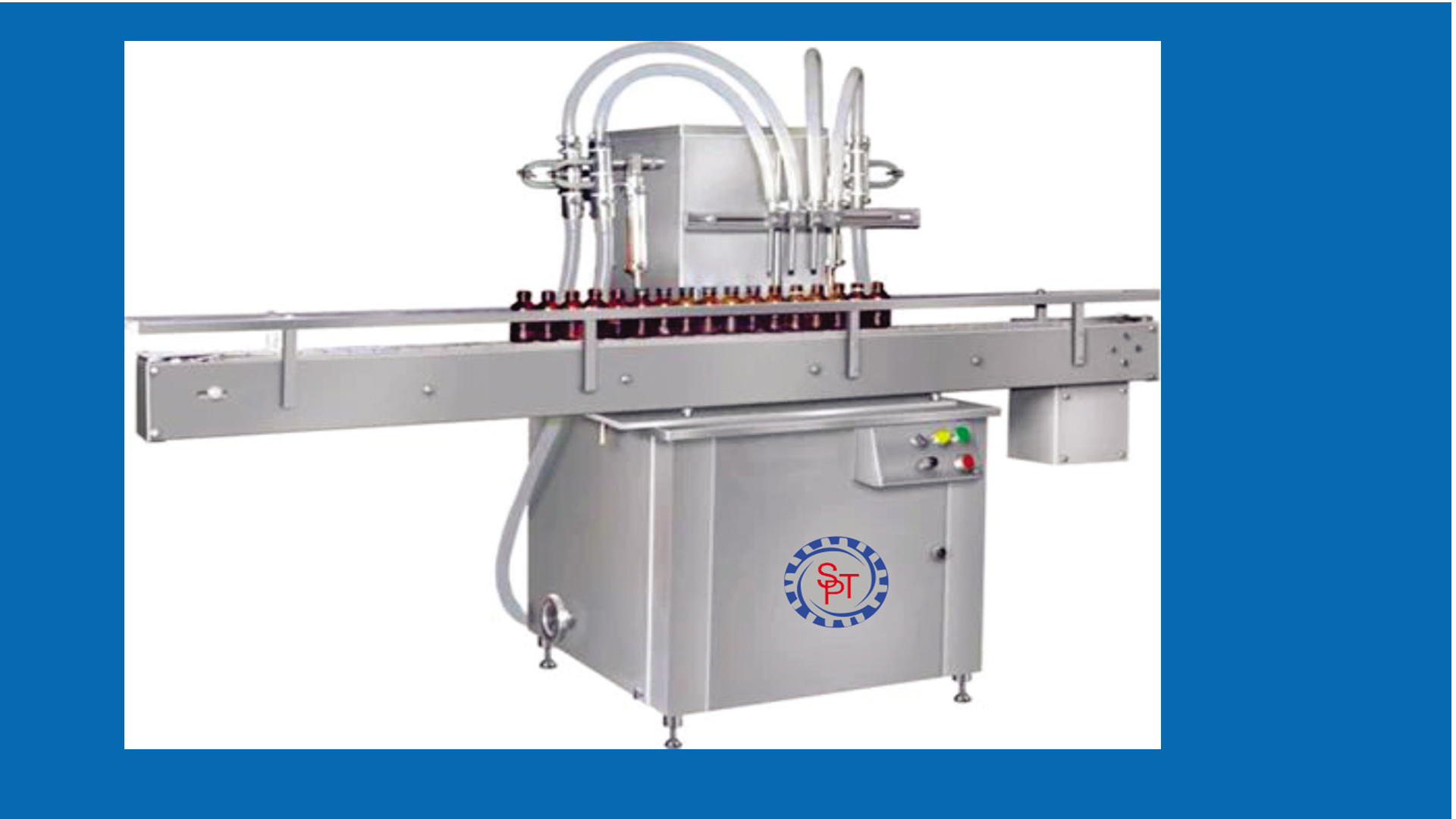

Our Liquid Filling Machine functions on volumetric principle with plunging nozzles. This unit is appropriate for filling different fluids into the bottles or containers. The Unit comprised of SS body, slat conveyor and reversing nozzles alongside auto-cantering instruments. In addition, the empty containers move on SS conveyor and stop via settable dual pneumatically or mechanically run stopper framework. This system is installed underneath the filling nozzles and in interim, the bottle or container is precisely filled by nozzles. The holder can be effectively and definitely co-ordinate underneath the nozzles by the help of dual pneumatically run framework and responding nozzles that prevent spillage. The fluid portion in our Liquid Filling Machine can be effectively set by block alongside a hexagonal bolt equipped underneath syringes.

Main Features :-

Optional Features :-

Technical Specification :-

Model	SPT-100	SPT-150	SPT-200
Output/Hour*	1800 to 4800	3200 to 7800	4300 to 11000
Direction of Movement	Left to Right
Number of Head/Syringe	4 Nos.	6 Nos.	8 Nos.
Fill Size***	5 ml to 1000 ml
Electrical Main Machine	1HP/ 415 Volts/50Hz	1HP/ 415 Volts/50Hz	1.5 HP/ 415 Volts/50Hz.
Specs. H conveyor	0.5 HP /415 Volts/50Hz
Height of Conveyor	750 mm to 900 mm Adjustable.
Change Parts Required	(A) Syringes	(B) Nozzle	(C) Inlet & Outlet Hose Pipe.
