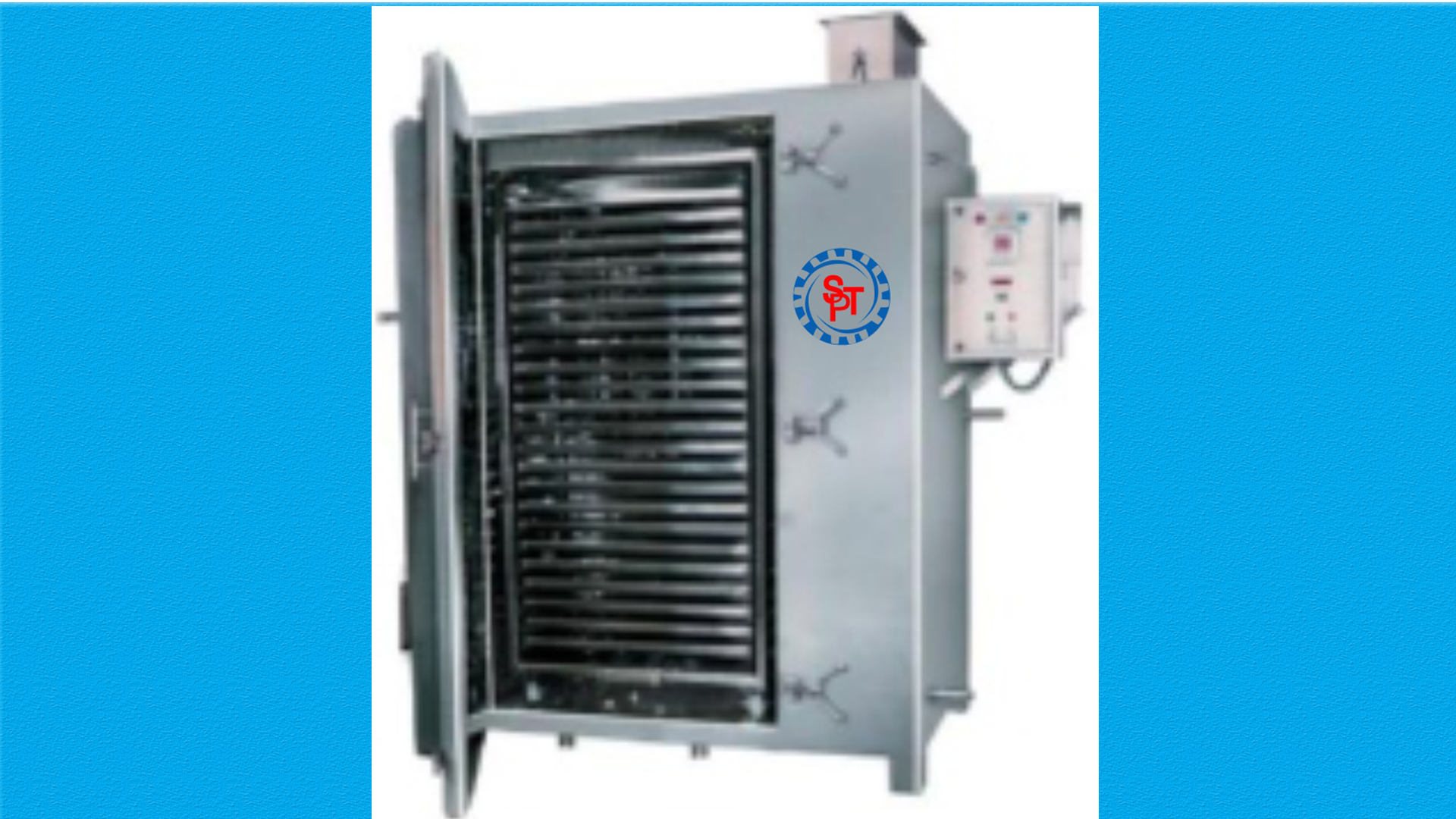

TRAY DRYER

Main Features :-

All contact parts of SS 316 / 316L as cGMP standard.
Available in wide range models from 6 to 192 raise capacity.
Design for uniform circulation of hot air in the drying chamber.
Heating cold and fan motor having electrical inter locking for safety of heating elements.
Electric/Steam/Thermic Fluid heating system.
Fresh air inlet and outlet air flow can be adjusted with damper control valve
Model External LxDxH(mm) (aprox) Temp. Range(degree centigrade) Heating Load(Kw) Fan Motor(HP)
12 1700x800x1450 80, 120, 280 10,12,14 0.5
24 1800x1150x2200 80, 120, 280 10,12,14 1.0
48 2450x1250x2200 80, 120, 280 10,18, 20 1.0
96 3600x1250x2200 80, 120, 280 18, 24, 28 1.0 (2nos)
