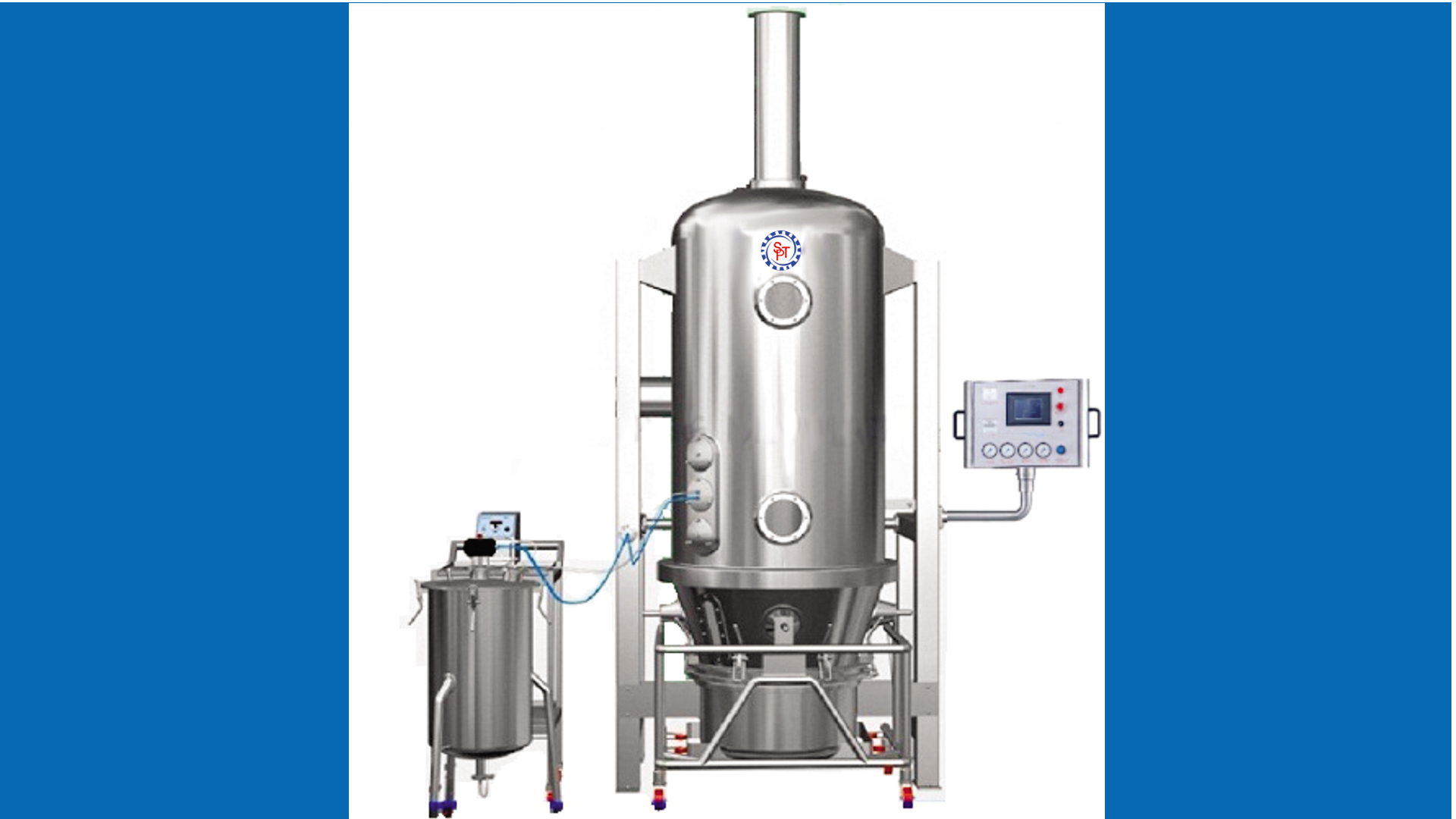

FLUID BED PROCESSOR

  • Home
  • Fluid Bed Processor

The Final Product Features :-

Perfect drying and granulation.
Increased flowability.
No segregation.
Improved compressibility.
Improved disintegration and dissolution properties.

Optional Features :-

Chilling Coil
RH Sensor, CFM Sensor
Bottom Spraying
Fully Automatic with SCADA System.

Salient Features :-

All Contact Parts SS 316 / 316L as per cGMP Standard.
2 Bar Construction.
Single pot operation i.e. Mixing, Granulating & Drying.
Three Stage Filtration i.e. 20m/5m/0.3m with DP.
Improved disintegration and dissolution properties.
Telescopic Cylinder for Bag Shaking.
Multi-pocket filter bag for perfect air suction with proper porosity and permeability.
Automatic Damper with Butterfly valve.
Exhaust Blower with ACVFD.
Explosion relief flap provided.
Inflatable tube provided for Finger Bag & Product container sealing.
Solid flow monitor & Air velocity sensor.
Solution tank with peristaltic pump.
Single / Multi point binder spray gun.
Positive earthling device.
Minimum change-over time.
Mirror and Matte finish.
Total machine operated by PLC/HMI.
Intelligent process control and safety interlock.

Technical Specification :-

Model FBP-30 FBP-60 FBP-120 FBP-200 FBP-300 FBP-500 FBP-600
Product Container Volume(Liters) 115 215 420 710 1015 1620 2000
Approx. Batch Capacity (Kg.) (Bulk Density 0.6gm/cc ) 15-30 30-60 80-120 160-200 240-300 400-500 525-600
Blower Motor (HP) 7.5 12.5 20 25 40 60 75
Approx. Steam Consumption kgs. Hr.(Steam pressure 4kg/cm2) 20-40 35-55 55-110 125-175 205-255 255-310 310-370
Static Pressure (MMWG) 740 745 795 795 795 795 795
