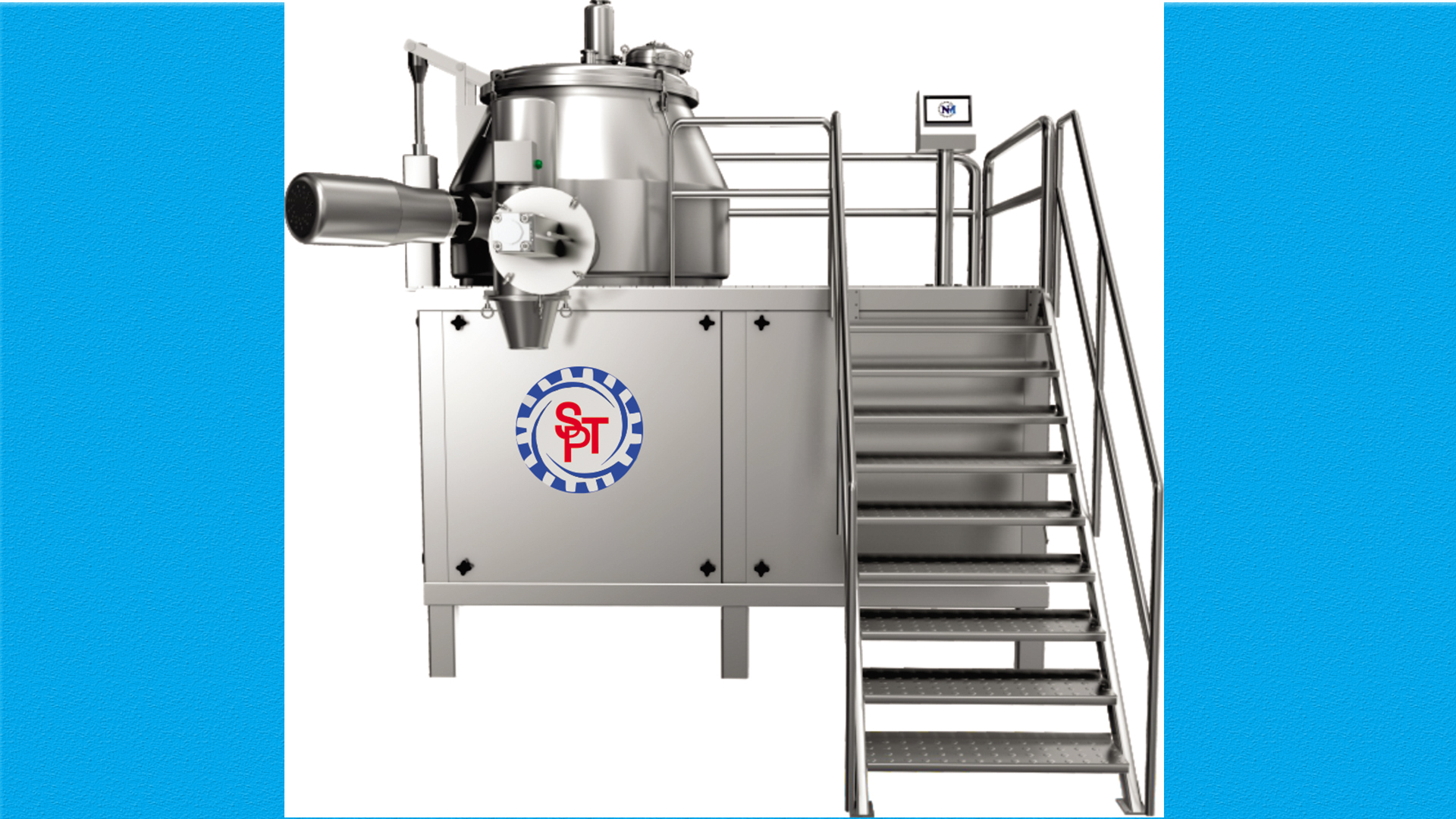

RAPID MIXTURE GRANULATOR

  • Home
  • Rapid Mixture Granulator

Main Features :-

All Contact Parts SS 316 / 316L as per cGMP Standard.
Unique design incorporating Impeller, Granulator, Online Co-mill, Side discharge valve & dryer.
Ensures the round and even granules of high density.
Dry and wet granulation in one step.
Detachable impeller & chopper ensure 100% cleaning.
Minimum possible gap between bottom surface and impeller ensures no deposition at bottom surface.
Specially mounted torque sensor arrangement for critical parameters of granulation like end point determination& desired granule profile.
Process control and interlock through by PLC with touch screen color HMI.
Automated discharge interlocked & interfaced with PLC.
Capacity : 5 Ltr. to 600 Ltrs.

Optional Features :-

FLP Construction.
Binder Addition System.
Fully Automatic with SCADA System.

Technical Specification :-

Model RMG-25 RMG-50 RMG-100 RMG-150 RMG-300 RMG-400 RMG-600
Gross Cap (Ltrs.) 25 50 100 150 300 400 600
Working Cap. (Ltrs) 18 40 80 120 240 320 480
Main Motor (H.P.) 3/5 517.5 7.5/10 10/15 20/30 30/40 40/50
Chopper Motor (H.P.) 1/1.5 1/1.5 2/3 3/5 3/5 5/7.5 5/7.5
