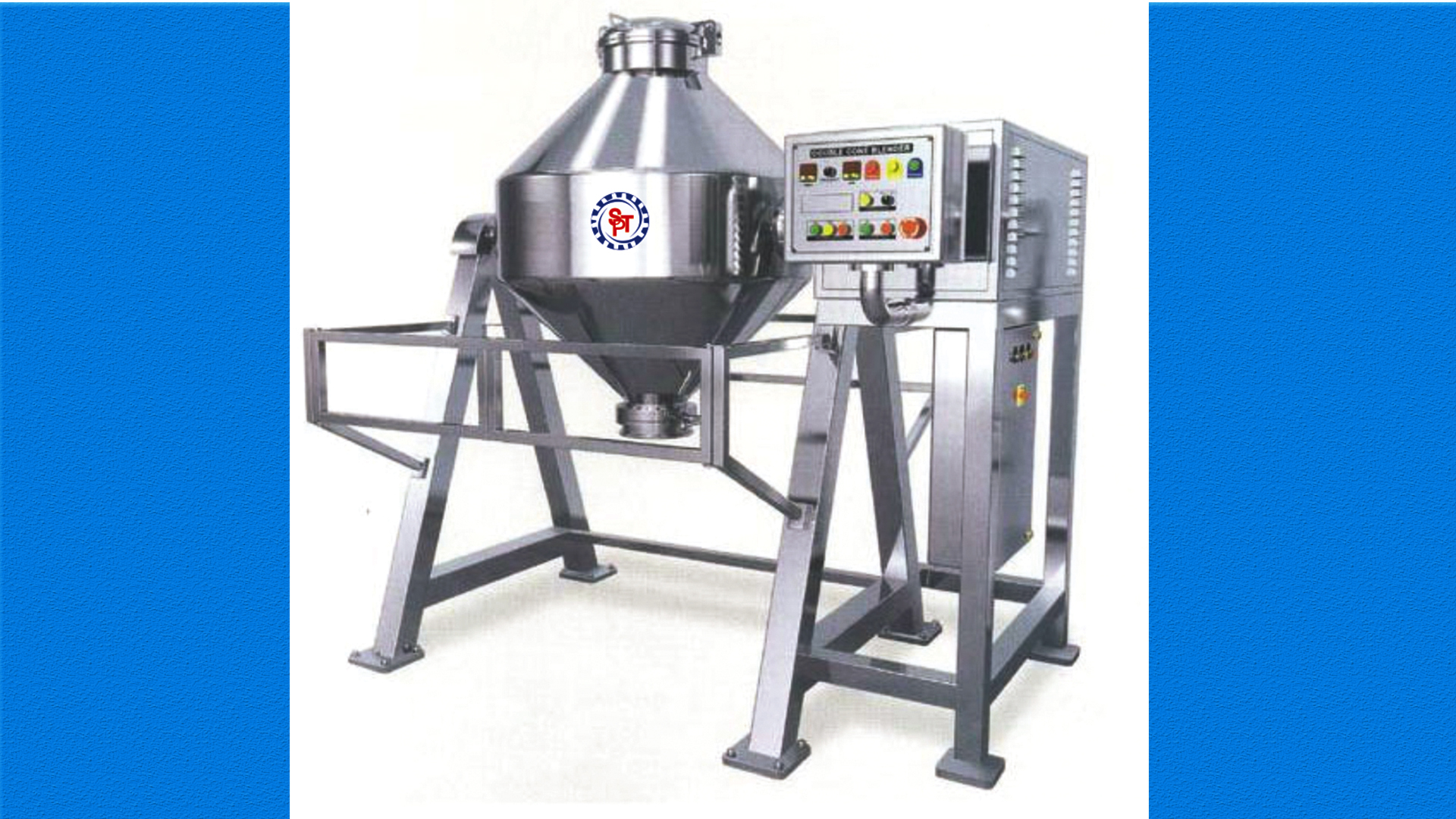

DOUBLE CONE BLENDER

  • Home
  • Double Cone Blender

Main Features :-

All Contact Parts SS 316 / 316L as per cGMP Standard.
Double Cone shaped with cylindrical shell at centre & conical shape at both ends.
Well balanced to avoid any excessive load on gearbox or motor.
Baffle is provided for better mixing.
Manhole with gasket is provided to fix the baffles and for ease of cleaning the shell.
Charging and discharging is through a butterfly valve.
A conical adaptor can be provided for fixing charging drum after butterfly valve.
Inching arrangement can be provided.
All Moving parts are enclosed in guards.
A safely railing with a limit switch is provided for operator safety.
ACVFD for variable speed
Available Models from 5 to 6000 Liters.

Technical Specification :-

Model DCB- 50 DCB- 100 DCB- 250 DCB- 500 DCB- 1000 DCB- 1500 DCB- 2000 DCB- 5000 DCB- 6000
Gross Volume in Ltrs 50 100 250 500 1000 1500 2000 5000 6000
Working Volume in Ltrs 35 40 175 350 700 870 1400 3500 4200
Motor (H.P.) 1 1 2 3 5 7.5 15 20 20
Speed rpm 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6
Discharge Valve inches 4" 6" 6” 6" 6" 10" 12" 12" 12"
Overall width in mm 1100 1400 1700 2000 2400 3200 3700 3900 4500
Overall Depth in mm 400 500 700 900 1100 1200 1300 2000 2500
