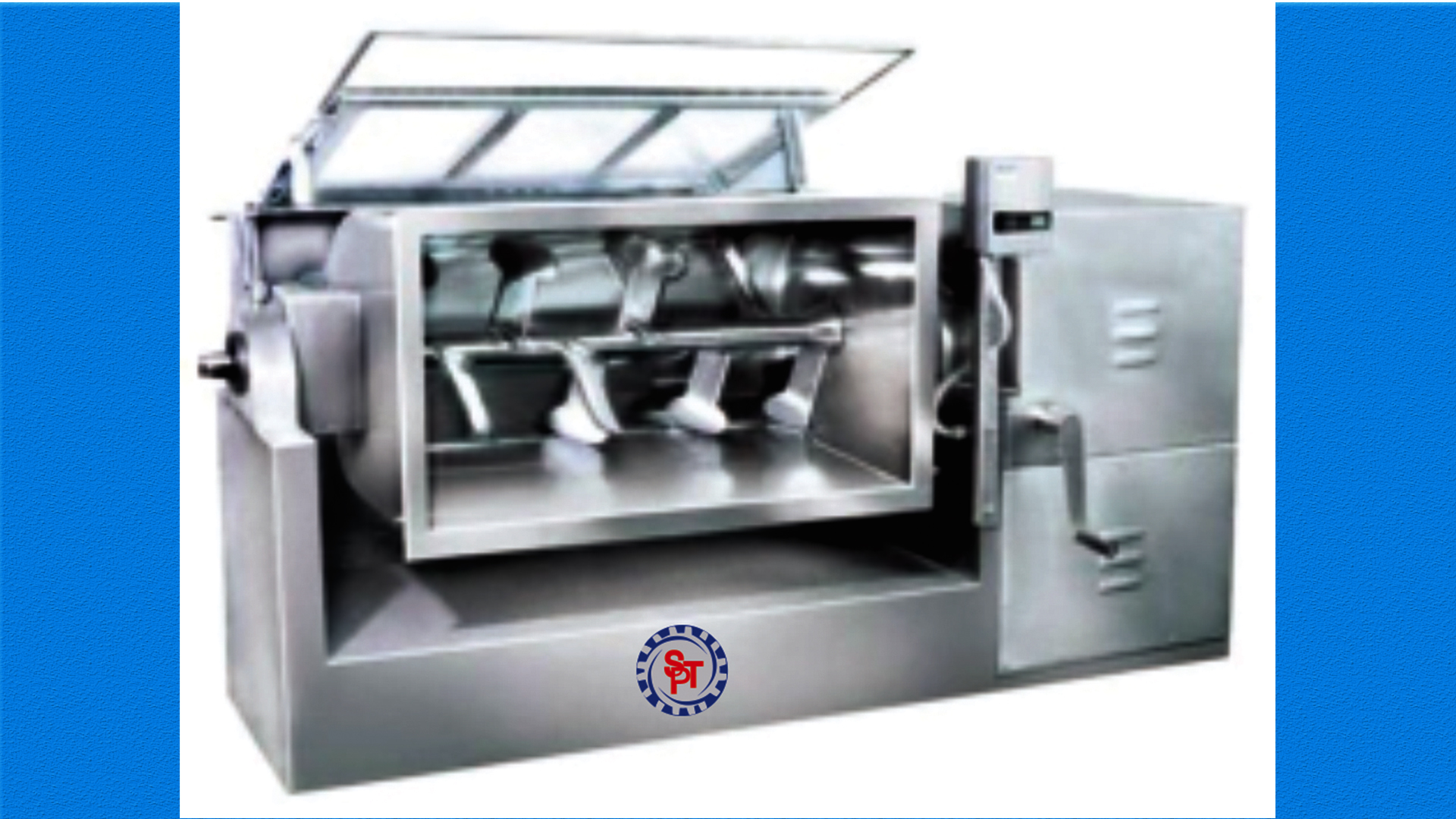

MASS MIXTURE

Main Features :-

All Contact Parts SS 316 / 316L as per cGMP Standard.
The laboratory Mixer operates with plough shape type mixing elements and is designed for dry mixing of powders, granules and fibers particle containing products.
Differences in volume ranging to 1:1,00,000 can be mixed homogeneously within a few minutes.
The drum, unilaterally supported on one sided & it tiltable.
The mixing drum made of stainless steel has a removable cover through which the material can be fed and discharged.
ACVFD for variable speed.

Technical Specification :-

Model MM-50 MM-100 MM-150 MM-200
Gross Capacity 100 Ltrs. 200 Ltrs. 300 Ltrs. 400 Ltrs.
Working Capacity 80 Ltrs 150 Ltrs. 250 Ltrs. 300 Ltrs.
Motor 3HP 5HP 7.5HP 10 HP
RPM 36 28 28 28
