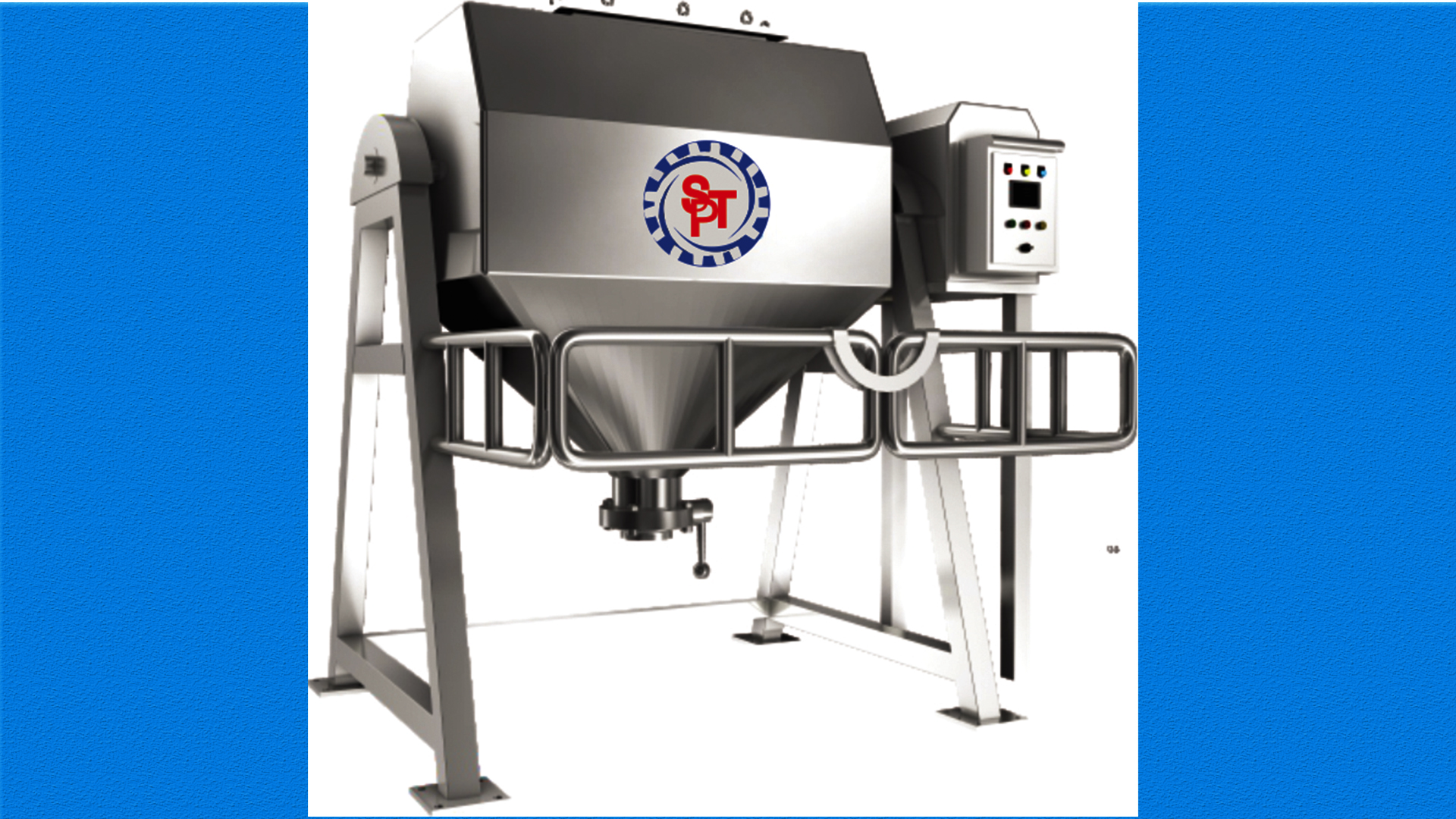

OCTAGONAL BLENDER MACHINE

  • Home
  • Octagonal Blender Machine

Main Features :-

All contact parts SS 316/ SS 316L as per cGMP Standard.
Zero retention design.
Bump less rotation assured because of specially designed transmission chain sprocket.
To enhance the mixing, baMes are provided on central shaft.
Internal finish confirming 220grits to 320 grits, outside matte finish 180 grits.
Discharge output via Butterfly valve. (Pneumatic discharge can be provided).
Safety guards provided with limit switch interlaced to motor
which ensures safe operation.
VFD for Change the RPM of blender.
PLC With Touch Screen Colour HMI.
Charging drum arrangement with mechanical/ hydraulic trolley.
Safe earthing system.
Available Models from 5 to 1000 Liters.

Technical Specification :-

Model OCB- 10 OCB- 30 OCB- 50 OCB- 100 OCB- 200 OCB- 300 OCB- 500 OCB- 600 OCB- 750 OCB- 1000 OCB- 1250 OCB- 1500
Gross Volume in Ltrs 10 30 50 100 200 300 500 600 750 1000 1250 1500
Working Volume in Ltrs 7 23 40 80 160 240 400 480 600 800 1000 1200
Motor (H.P.) 0.5 0.5 1.0 2.0 2.0 2.5 3.0 3.0 5.0 5.0 7.5 7.5
Gear Box 1" 1" 2" 2" 3" 3" 3" 3" 4” 4" 5" 5"
